Home » Products » Wet Tissue Machine (Machine for Wet Tissue Packaging) » KGT-340B Wet Tissue Machine (Full Automatic Wet Tissue Packaging Machine)

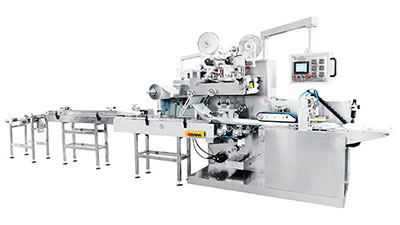

KGT-340B Wet Tissue Machine (Full Automatic Wet Tissue Packaging Machine)

Dachang is a professional wet tissue machine supplier that specializes in the production of fully automatic wet tissue packaging machines (30-120 sheets/pack). With a capacity of 40-60 packs/minute, the KGT-340B wet tissue packaging equipment is the fastest machine for the mass production of wet tissues. It comes with a color touch screen and PLC control, and also has two labeling devices that can be used individually or together. The electrical control is available in both manual and automatic modes to suit different control needs. All important electrical components are from Mitsubishi, and with its fast speed and operational stability, it is a popular tool among paper towel manufacturers. For more information, please continue browsing or contact us directly.

Parameters of the Wet Tissue Machine
1. Power supply: three phase 380V 50HZ
2. Power: about 6KW
3. Production speed: 40 - 60 packs/min
4. Package dimensions (mm): (180-320) × (80-120) × (20-90) (L × W × H)
5. Size of machine: 4700×1200×2350 (L × W × H)

Features of the Wet Tissue Machine
1. Mechanical packaging film tension control.
2. Double labeling machines.
3. Automatic window opening into the packaging film.
4. Thermo marking (date) device.
5. Reciprocating cross sealing device with gusset-insert device.
6. Eight servo motors that control packaging film feeding, cross sealing and labeling.
7. The center sealing device that controls the opening and closing of the cylinder. The sealing wheel comes apart automatically when the wet tissue machine stops.
8. Hole punching and labeling locations can be set using the touch screen.
9. Automatic raw material feeding device.
10. Frame-based machine.

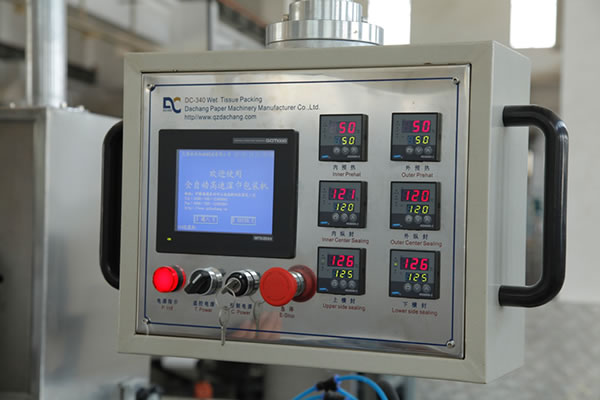

  • PLC Control
  • Labelling

Raw Material Specification
1. Packaging film: Width ≤ 360mm, Diameter ≤ 400mm
2. Label: Width ≤60mm, Diameter ≤ 300mm

Configurations of the Wet Tissue Machine
1. Mechanical packaging film tension control.
2. Automatic window opening device.
3. Two labeling devices, which can be used alone or together.
4. Packaging film forming device.
5. Packaging film longitudinal sealing device.
6. Packaging film cross sealing device, driven by two servo motors that run synchronously.
7. Auto/manual control: to meet control needs in different production processes.
8. Each motor can be started and stopped separately via touch screen.
9. Two urgent-stop buttons.
